AJB: Array Junction Box
- Function: An AJB, or Array Junction Box, is used to connect multiple strings of solar panels together before routing the combined output to the next stage of the PV system. It serves as a central point where several solar panel strings converge.
- Components: Typically includes DC circuit breakers, fuses, surge protection devices, and terminal blocks.
- Purpose: Ensures safe and efficient collection and distribution of the direct current (DC) generated by solar panels.
ACDB: AC Distribution Box
- Function: An ACDB, or AC Distribution Box, is used to distribute the alternating current (AC) output from the inverter to various loads or the grid. It is an essential part of the balance of system (BOS) components in a solar installation.
- Components: Usually contains circuit breakers, meters, relays, and surge protection devices.
- Purpose: Provides a controlled and protected pathway for AC power to flow from the inverter to the main distribution panel or directly to the loads.
DCDB: DC Distribution Box
- Function: A DCDB, or DC Distribution Box, is designed to manage and protect the DC power from the solar panels before it reaches the inverter. It often follows the AJB in the power flow sequence.
- Components: Includes DC circuit breakers, fuses, isolators, and surge protection devices.
- Purpose: Ensures the safe distribution of DC power and protects the system from faults and surges on the DC side.
Summary
- AJB (Array Junction Box): Combines multiple strings of solar panels.
- ACDB (AC Distribution Box): Distributes AC power from the inverter to the grid or loads.
- DCDB (DC Distribution Box): Manages and protects the DC power before it reaches the inverter.

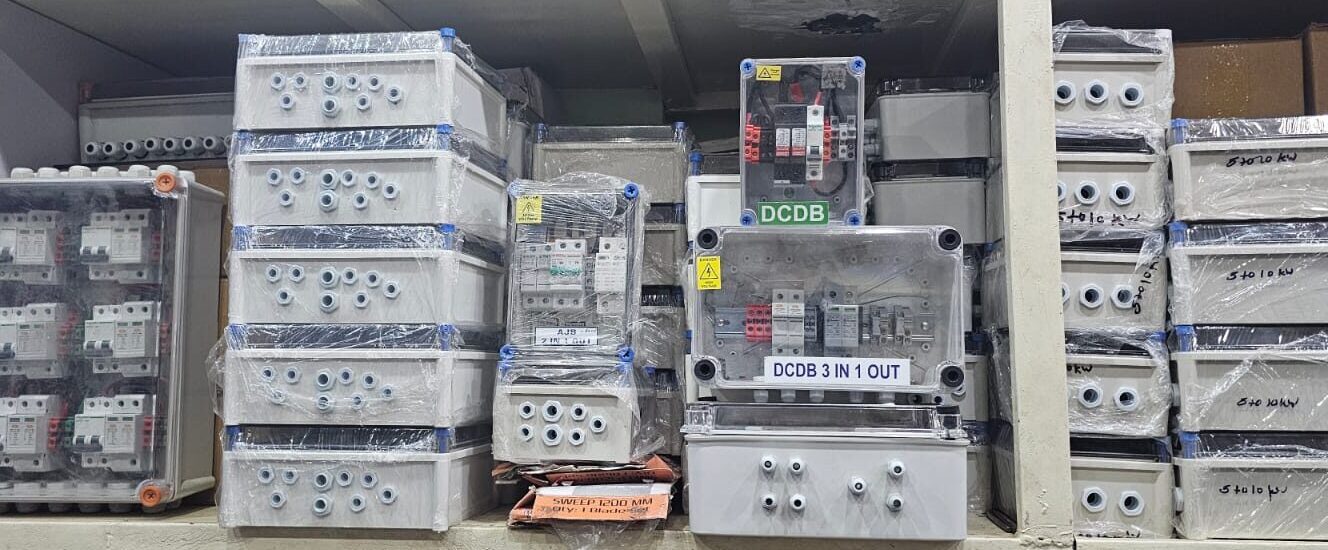

AJB, ACDB & DCDB Stocks Available at our stores!
